It features two HDMI outputs and a user assignable HD-SDI output.

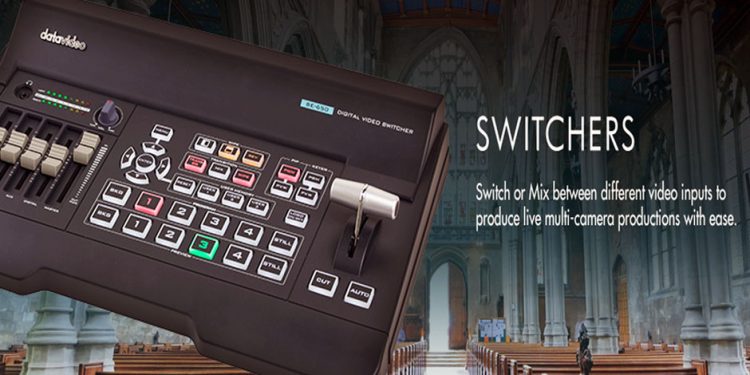

The SE-650 is the perfect device for small scale video production using professional cameras and HDMI equipment. The SE-650 also features an audio mixer with microphone and unbalanced RCA audio inputs.
Advanced tools include Chromakey, Luma key, PiP, wipe generator, still store and tally.
Features :
————
• ۴ Input HD digital video switcher
• Inputs: 2 x HD-SDI, 2 x HDMI
• Outputs: 1 x HD-SDI, 2 x HDMI
• Any Input can be used as a Frame store (Stills Store)
• Assignable Outputs: Program (w/ LOGO), Clean Program (w/o LOGO), Clean Preview (w/o LOGO), Multiview
• Frame Sync on each input
• Flexible Mix/Effects Processor with 1 Upstream Keyer, supporting Chromakey & Linear/ Luma Key
• ۱ Upstream PIP, supporting Chromakey & Luma Key
• Wipe Generator: 32 Wipe Patterns, including Circle & Heart – Borders & Softness Control
• Full M/E Preview function
• Logo insertion
• XPT (Cross Point Assignment)
• Tally Output
• ۶ Channel Audio Mixer
• Audio inputs: 2 x RCA Analogue (L/R), 2 x Microphone
• Audio outputs: 2 x RCA Analogue (L/R), 1 x Stereo headphone mini Jack
• Audio em-bedded function
• Multi-language support
Specifications :
——————-
Product Name : HD 4-Channel Digital Video Switcher
Video Standard : HD
Video Format :
۱۰۸۰i 50/59.94/60Hz
۷۲۰p 50/59.94/60Hz
Video Processing : SDI: 4:2:2 HDMI: YUV 4:2:2 10 bit, RGB: 4:4:4
Input Routable / Crosspoint : All 4, repeatable
Video Input : 2x HD-SDI + ۲x HDMI
Mix HD & SD source : HD only
Computer Graphic Interface : 2 via HDMI
Video output : 2x HDMI (1 is MV, 1 is Assignable) + ۱x HD-SDI (Assignable)
Down-converted output : N/A
Built-in Multi-view monitoring out : HDMI
Audio input :
۱x Stereo RCA (L/R)
۲x Mono Microphone
De-embedded Digital Audio (2 CH)
Audio output
۱x Stereo RCA (L/R)
۱x Stereo headphone (Mini Jack with volume control)
Embedded Digital Audio (2 CH)
Embedded audio support : Embedded 2-CH digital/analogue audio
Audio Delay Calibration : N/A
A+V switching : Yes
Chromakey : 2 (M/E Keyer & PIP)
Title Creator : N/A
USK : 2x USK supports M/E Keyer & PIP
DSK : N/A
Picture in Picture : 1
Logo Insertion : 1
Still Store : 500
Effects : FTB, Cut, 32 Wipe with border
Transition Preview : Full transitions preview
Sync / Reference In/Out : Built-in Genlock (internal)
Tally Output : 1x D-sub 15pin, dual color
PC Remote Control : N/A
Built-in Audio Mixer : 6 channels
Special Features : Stinger transition
Chassis : Unibody
Power : DC 12V
Accessory : CB-46/47/50 (30/50/100m)
